How can i get from low Kerbin orbit into a highly elliptical orbit to place a satellite?


Question

First satellite mission where i have to get into an orbit that is very far away from the launch pad,i have tried it with heavier and heavier payloads but it just burns too much fuel and i can never get into the correct orbit.

I'll post my Science tree,craft and the exact orbit later today.BTW for some reason i can't add the mission orbit as a target or activate navigation on it.

Edit:Thx for the help everyone

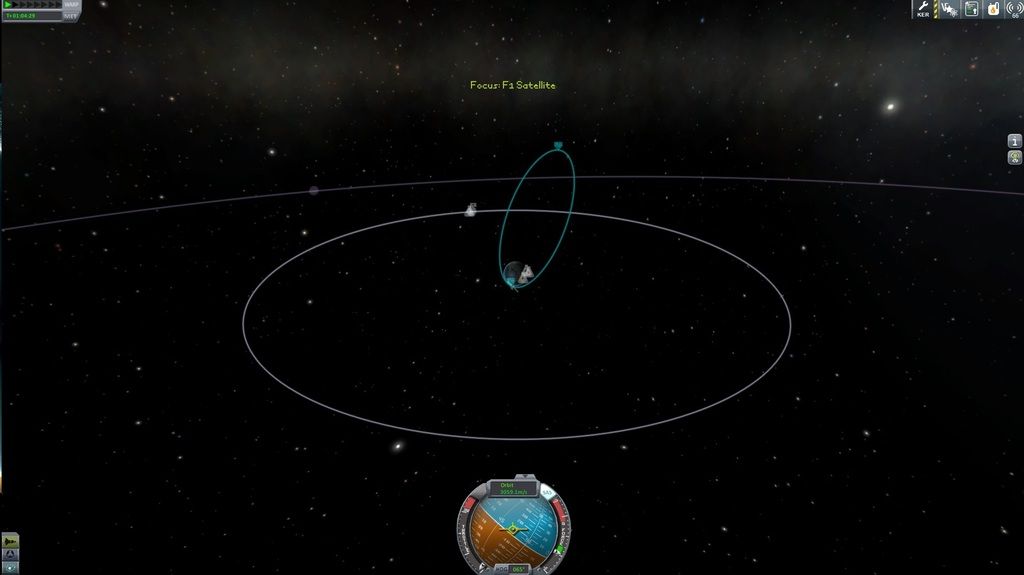

KSP2_zpsbnxjlahm.jpg?t=1432289567

Edited by DCWarHound
Did it :D
Link to post
Share on other sites

15 answers to this question

Recommended Posts

  • 0

Essentially, try to burn from launch into the plane of the orbit.

Failing that, burn to the eccentric orbit and then turn the orbit at apoapsis.

If you could share the specifics of the current orbit vs the planned one, that would help.

Remember when building satellites, less gives more dV. A small engine can take you a LONG way if the craft is mostly fuel, and you don't need a powerful engine unless you are planning to land on somewhere.

Link to post
Share on other sites
  • 0

Yeah, the easiest way is to wait on the launch pad until the orbit you need is approximately overhead, and then try to perform your gravity turn in the direction of the target orbit. You'll still need to do some correction, but hopefully only a few degrees.

Link to post
Share on other sites
  • 0

OP mentioned eliptical orbit not inclined eliptical. First satelite missions rarely gives you inclined orbits. Also you cant click on desired orbit. It is there only for reference. You cant click on orbits of planets either.

We realy need those pictures to be able to help.

Edited by Cebi
Link to post
Share on other sites
  • 0
Also you cant click on desired orbit. It is there only for reference.

Yeah, that always struck me as kind of a UI hole; seems like the game should provide some way to target the orbit in that case.

You cant click on orbits of planets either.

True, but at least you can target a planet itself, which gives you all the useful visual references. In the case of contracts for putting a craft in a specific orbit, there's much less help.

We realy need those pictures to be able to help.

Or even better than pictures would be the numbers-- specifically, the periapsis, apoapsis, and inclination. These are listed in the contract description in Mission Control.

Link to post
Share on other sites
  • 0

First make. Sure you have enough dv.

Then you split up burns and burn at periapsis to take advantage of the oberth effect.

Once your apoapsis is at the desired height, change your inclination to what you desire while at apoapsis

Then you raise your periapsis at apoapsis to the desired altitude. Bonus points for combining the last two steps in one burn

Link to post
Share on other sites
  • 0
Yeah, the easiest way is to wait on the launch pad until the orbit you need is approximately overhead, and then try to perform your gravity turn in the direction of the target orbit. You'll still need to do some correction, but hopefully only a few degrees.

It's even easier when you rotate your craft in the VAB to turn in the correct direction when performing your usual launch profile.

Link to post
Share on other sites
  • 0

I think we as forum help are missing the point, he is have trouble figuring out how to get an orbit in Kerbin SOI and we are tossing out terms and such with out explaining what they mean.

Let's back or up a little and start from the beginning. ......and I have to go to work now

Link to post
Share on other sites
  • 0

Here it is a screenshot of the orbit and my science tree,i'll post the objective since it became blurry.

KSP_zpsymltpxge.jpg?t=1432222881

Apoapsis :5,663,786 meters

Periapsis :73,502 meters

Inclination :63.4 degrees

Longitude of ascending node :191.1 degrees

Argument of Periapsis :270 degrees

Launch an unmanned probe that has an antenna:

Reach the designated orbit around Kerbin with minimum deviation:

Have a Mystery goo unit on the satellite:

Have a material bay on the satellite:

Maintain stability for ten seconds:

Link to post
Share on other sites
  • 0

1) You'll need to launch when the target orbit is directly overhead. This happens two times per day. One time the northbound section of the orbit will pass overhead and the other time the southbound section will pass overhead.

2) You need to launch to the correct inclination. If you launch when the northbound segment passes overhead (at its ascending node), you need to launch to a heading of 90°-desired_inclination plus a couple of degrees to account for Kerbin's eastward rotation. In this case that equates to a heading of about 30°. This means you should lean your rocket toward the 30° mark on the horizon-line on the Navball as you ascend (not the 30° mark that indicates pitch.) If you launch when the southbound segment passes overhead (at its descending node), you need to launch to a heading of 90°+desired_inclination minus a couple of degrees. (You always make the correction for Kerbin's rotation toward 90°.) In your case, you'd launch to a heading of about 150°.

2a) When you get skilled enough, you can switch to the map screen during the final minute or so of your ascent and nudge your rocket right or left to adjust your heading to make your suborbital arc parallel to the desired orbit, which should put you very close to the correct inclination.

3) Raise your apoapsis to the periapsis of the desired orbit (73.5km) and circularize there. Your orbit should be parallel to the desired orbit, nestled inside it, touching just at the desired orbit's periapsis.

3a) If you need to correct your inclination, you should do it now by burning either normal or anti-normal (the pink triangles on your Navball) at one of the two points where your orbit crosses the desired orbit. (The crossing points are the ascending and descending nodes.) Use a maneuver node to figure out which way to burn and how much. (For reference, you always burn anti-normal at the ascending node - AN at the AN.)

4) Coast to the desired orbit's periapsis and burn prograde to raise your orbit's apoapsis to match the desired orbit's apoapsis.

Note: Step 1 ensures you have the correct longitude of the ascending node (LAN), Step 2 ensures you have the correct inclination, Step 3 matches periapsis and Step 4 matches apoapsis and argument of periapsis.

Edited by Mr Shifty
Link to post
Share on other sites
  • 0
Here it is a screenshot of the orbit and my science tree,i'll post the objective since it became blurry.

http://i1228.photobucket.com/albums/ee457/DCBloodHound/KSP_zpsymltpxge.jpg?t=1432222881

Apoapsis :5,663,786 meters

Periapsis :73,502 meters

Inclination :63.4 degrees

Longitude of ascending node :191.1 degrees

Argument of Periapsis :270 degrees

Launch an unmanned probe that has an antenna:

Reach the designated orbit around Kerbin with minimum deviation:

Have a Mystery goo unit on the satellite:

Have a material bay on the satellite:

Maintain stability for ten seconds:

DC WarHound,

You'll have to launch into the plane of the target orbit as described above. If you try to launch east and then correct it afterwards, you're looking at 2300 m/sec DV to fix it. And of course... make sure you're going the right way. People often make the mistake of trying to orbit backwards.

After you're lined up under the target Pe, burn prograde until you've matched the target Ap. once at Ap, burn prograde to match Pe.

Best,

-Slashy

Link to post
Share on other sites
  • 0

To pile onto the previous explanations:

You can get anywhere from anywhere given enough fuel. Efficiency is good to keep the fuel requirement manageable but oopsies and tweaks are fine. Some adjustments are cheap to make and others are expensive.

Since KSC moves around the equator in time there are two times per rotation when KSC (and thus the rocket on the launch pad) passes through the plane of the target orbit. You don't have to launch at one of these two moments but it absolutely helps. If you can be in-plane from launch to final destination the whole time, life is easier and it takes less fuel overall. You can eyeball the situation by focusing on Kerbin and shifting the camera such that the target orbit collapses to a line. You're looking at the edge of the target orbit. Then you can warp ahead in time until KSC rotates under that line, either side is fine.

So these are the two launch times that are desired. The space craft leaves the pad co-planar to the target orbit. If the target orbit is inclined 60 degrees you want to launch on about a heading of 30 or 210. The idea is that launching east (90) is 0 degrees inclination increasing to the north (0) for 90 inclination. Going west (270) is 180 inclination and so on. In any case it should be clear to see that 60 degree inclination is a mixture of 2/3rd northward and 1/3rd eastward orbit. The whole confusion about heading and inclination is because the history of compasses is 000 is north increasing clockwise while in math/astronomy east is 000 and increases counterclockwise. Those jokers.

The caveat to the above is there are two sides to every orbit and if you're using the #2 launch location you'd have to go heading 210 off to pad to keep in plane. It's pretty easy to tell them apart look at the dots' motion just above the launch site.

If you manage to get into a coplanar (+-5 degrees) roughly circular 70x70km ideal around Kerbin you're 95% of the way there. Then the task is simply to burn prograde when you're on the opposite side of the "Ap" of the target orbit. Prograde burning will inflate the opposite side of your orbit. Inflate your "Ap" out to the target's "Ap" and once out there inflate (or deflate) your "Pe" to match the target orbit's.

If your circular orbit after launch isn't such a nice circle there are more adjustments. The only ideal would to have your "Pe" post launch be exactly opposite of the target's "Ap." If it isn't some burning toward or away from Kerbin during your "Ap inflation" will shift the resulting position of the "Ap." Any extra orbit size on the same side as that high target "Ap" is absolutely fine because you're going to do that anyway. Extra orbit size on the "Pe" side is a fuel inefficiency.

Corrections to match orbits should always be done at where your orbit crosses the plane of the other orbit. Until you're on the same sheet of paper as the target orbit, you have a 3D problem. Once you get on his plane then it's a 2D problem solvable with only radial and pro/retro-grade. Once you get your Ap-Pe lines to match up it's a 1D problem solvable with only pro/retro-grade.

Link to post
Share on other sites
  • 0
So these are the two launch times that are desired. The space craft leaves the pad co-planar to the target orbit. If the target orbit is inclined 60 degrees you want to launch on about a heading of 30 or 210.

Great explanation! Just a quick correction here, though. I'm pretty sure I'm correct and that you want to launch to 150°, not 210° in order to catch the orbit at the descending node. One way to see this is to imagine that KSC is stationary and that the desired orbit is rotating around Kerbin's center. Another is to recognize that no prograde orbit is going to require a retrograde launch to catch.

Link to post
Share on other sites
  • 0
Great explanation! Just a quick correction here, though. I'm pretty sure I'm correct and that you want to launch to 150°, not 210° in order to catch the orbit at the descending node. One way to see this is to imagine that KSC is stationary and that the desired orbit is rotating around Kerbin's center. Another is to recognize that no prograde orbit is going to require a retrograde launch to catch.

Good catch. I wasn't doing all the transforms in my head properly. 60 deg inclination is going up-right ascending (north east) and down-left descending. But when you rotate half way around Kerbin down-left becomes down-right so again south east.

Link to post
